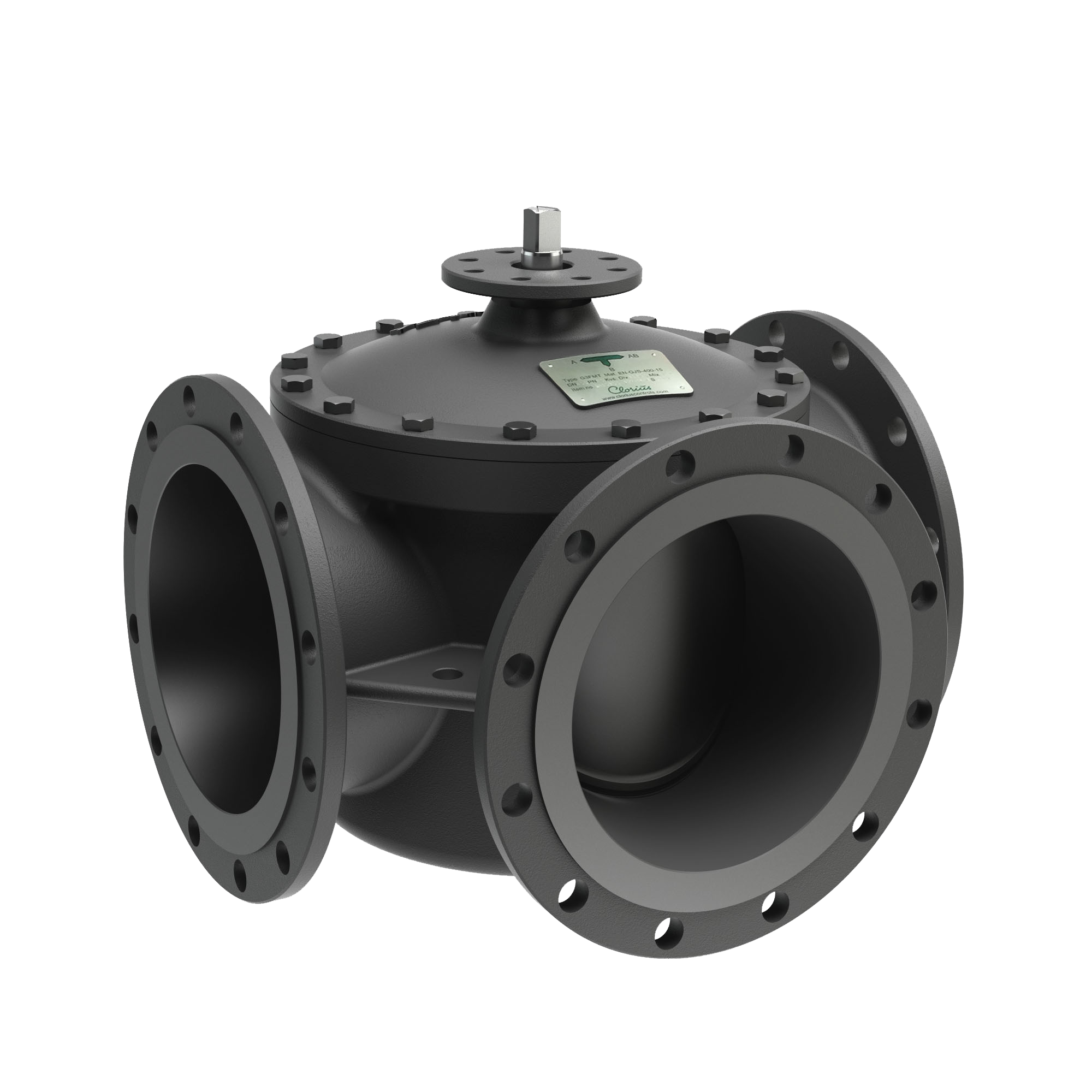

Clorius VALVE DN150 G3FM-TL ANSI 150

Product data

SKU: 1-2430423 Categories: 3-way-control-valves-rotary, Valves Brand: Clorius Control Valves

Set the quantity of the product and request a quote. Your product list will be updated and you can make further edits in your list here.

Product information and documentation

3-WAY, PORT AB-LEFT
FLANGE CONNECTION: DN 150
FLANGES DRILLED ACC. TO ANSI 150
NOM. PRESSURE: 16 BAR
KVS-VALUE, MIXING: 395 M3/H
KVS-VALUE, DIVERTING: 425 M3/H
MATERIAL BODY/SLIDE: NODULAR CAST IRON, EN-GJS-400-15
UNIT WEIGHT: 71 KG
DATASHEET NO.: 2.6.03

Information and documentation for this product has not yet been added. For all questions please contact us.

Additional information

Additional information

Weight	70 kg
Datasheet	https://broen.compano.com/Data/Environments/000001/Attachment/Bijlage/PRD/ProductGroup/Clorius/Datasheets/GB/0-2.6.03-H-G3FM-TL.pdf
