Clorius CAR-H 024~110V STANDARD- DN150

Product data

SKU: 1-5233320 Categories: , Brand:

Set the quantity of the product and request a quote. Your product list will be updated and you can make further edits in your list here.

Product information and documentation

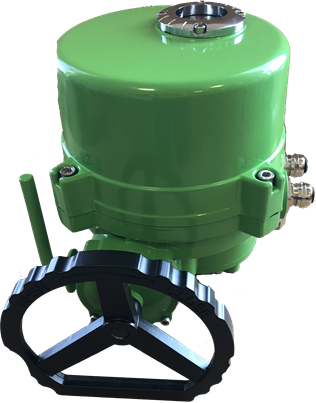

CAR-H 024~110V STANDARD
Rotary Electric Actuator with handwheel
FOR VALVES:
DN150 G3FM-T
Power Supply: 110VAC/ 50-60Hz +/-10
Max. Torque: 240 Nm
Open/Close time 50-60Hz: 28/26 s
Motor power: 45W
Control signal: ON -OFF
Rated Current: 1,6 A
Circle number of handwheel 12
Heater: 5W
Torque switches: Open/Close
Limit switches: 2x Open/Close
Travel angle: 90° ± 5°
Duty cycle: S2 10 min~30 min
Permitted ambient temperature -20 to +60°C
Indicator on the top cover
Overvoltage: Category III
Manual override AUTO Declutching Mechanism
Worm gear permanently lubricated and self-locking
Cable Glands 2xM20x1,5
Body/Cover color RAL6018
Protection class IP67
Flange connection square 19×19 ; ISO flange Ø102
Weight: 14 kg
Datasheet: 4.11.09

Information and documentation for this product has not yet been added. For all questions please contact us.

Additional information

Weight18 kg
Datasheet

https://www.cloriuscontrols.com/media/9275/0-41109-d-car-h.pdf
